Commuter

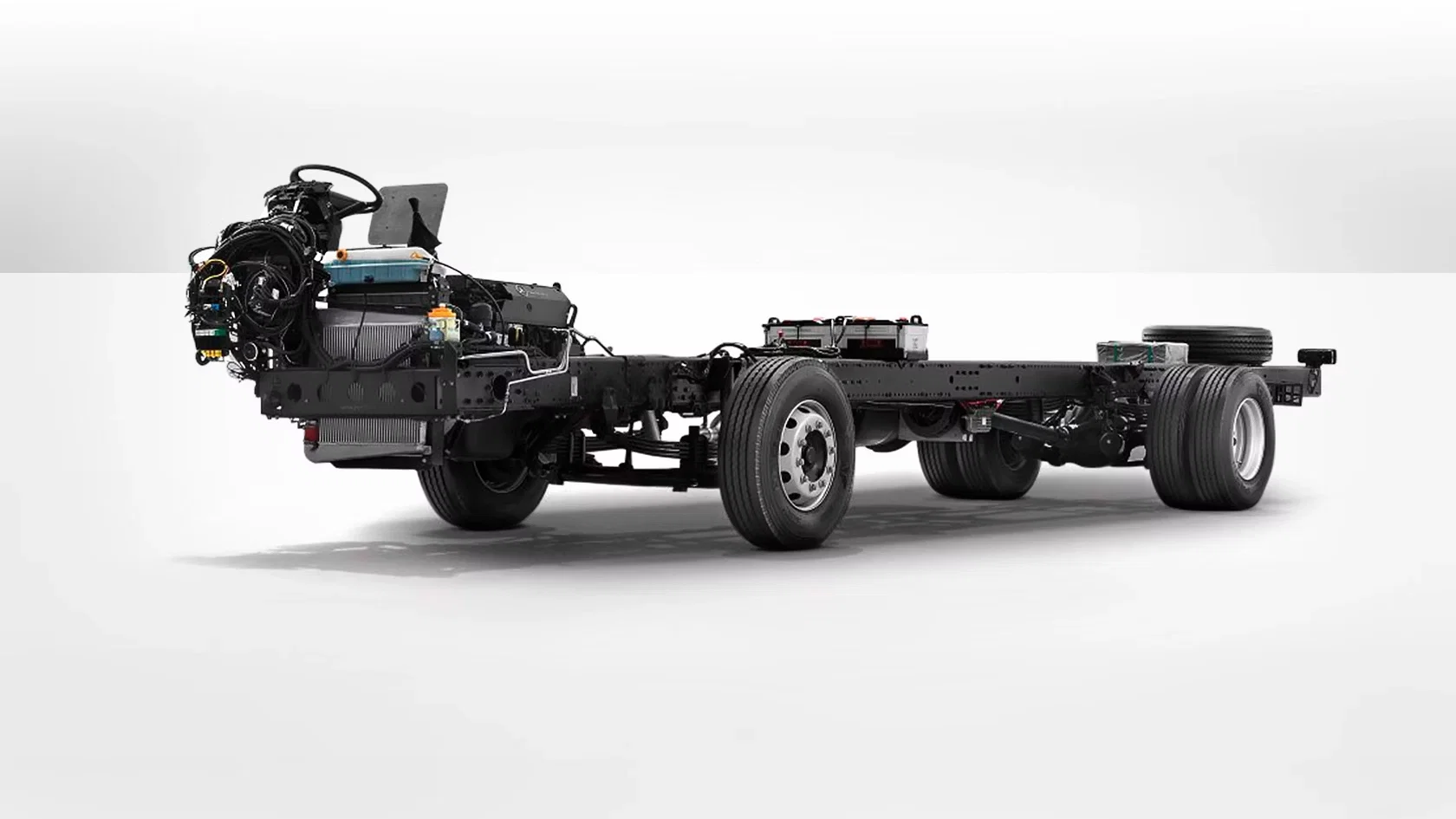

A Commuter bus is a type of bus used on shorter-distance public transport bus services. The chassis is built for short and long distance travel with its standard safety features. The suspension caters for the comfort of passengers whilst durable enough to enable the bus to accommodate boarding and alighting of passengers at the curb side on rural roads. The chassis makes for easy body building fitments, with body and chassis configurations to allow for maximum seating of 66 passengers with standees and luggage.

Engine options range from 230 Hp to 300 Hp with both Automatic and Manual transmission, with electronic diesel control is the heart of the chassis, offering common rail injection systems. In addition to a notably quiet operation complemented by efficient engine cooling for peak performance in all operating conditions, flat engine torque ensures higher pulling power and low gear shifts.

OF 1723 Euro 3 Manual

Technical data

Engine

Make / Model OM 906
Capacity (cm3) 6374
Layout 6 cylinder Inline
Type Turbo
Power - kW @ r/min 170 @ 2200
Torque - Nm @ r/rim 810 @ 1200-1600

Transmission

Make / Model G 85
Type Synchromesh
Shift Manual
No of Forward Gears 6
High / Low Ratios 6.7 / 0.73

Dimensions (mm)

Overall Height 2608
Overall Length 11765
Overall Width 2428
Front Overhang 2305
Rear Overhang 3510
Wheelbase 5950

Mass (kg)

Manufacturer's Gross Vehicle Mass (GVM) 16200
Manufacturer's Gross Combination Mass (GCM) 16200
Manufacterer's Rear Axle Weight 11000
Manufacterer's Front Axle Weight 6600

Clutch

Type SETCO organic
Diameter (mm) 395

Drive Axle

Reduction Type Single
Final Ratio 5,22

Brakes

Type Full air dual
Front Drums
Rear Drums
Anti-lock Braking System (ABS) Yes

Fuel

Tank Capacity (l) 380

Tyres

Size 295/80R22.5

OF 1726 Euro 3 Automatic

Technical data

Engine

Make / ModelOM 906
Capacity (cm3)6374
Layout6 cylinder Inline
TypeTurbo
Power - kW @ r/min191 @ 2200
Torque - Nm @ r/rim950 @ 1200 - 1600

Transmission

Make / ModelVoith Diwa 6
TypeSynchromesh
ShiftAutomatic
No of Forward Gears4
High / Low Ratios5.200 - 0.700

Dimensions (mm)

Overall Height2608
Overall Length11900
Overall Width2620
Front Overhang2406
Rear Overhang3542
Wheelbase5950

Mass (kg)

Manufacturer's Gross Vehicle Mass (GVM)18100
Manufacturer's Gross Combination Mass (GCM)21100
Tare (T)6146
Manufacterer's Rear Axle Weight11000
Manufacterer's Front Axle Weight7100

Drive Axle

Reduction TypeSingle
Final Ratio5.857

Brakes

TypeFull air dual
FrontDrums
RearDrums
Anti-lock Braking System (ABS)Yes

Fuel

Tank Capacity (l)300

Tyres

Size315/80R22.5

Suspension

FrontParabolic Leaf Springs
RearParabolic Leaf Springs

OF 1730 Euro 3 Automatic

Technical data

Engine

Make / ModelOM 926
Capacity (cm3)7200
Layout6 cylinder Inline
TypeTurbo
Power - kW @ r/min225 @ 2200
Torque - Nm @ r/rim1200 @ 1400 - 1600

Transmission

Make / ModelVoith Diwa 6
TypeSynchromesh
ShiftAutomatic
No of Forward Gears4
High / Low Ratios5.200 - 0.700

Dimensions (mm)

Overall Height2608
Overall Length11900
Overall Width2620
Front Overhang2406
Rear Overhang3542
Wheelbase5950

Mass (kg)

Manufacturer's Gross Vehicle Mass (GVM)18100
Manufacturer's Gross Combination Mass (GCM)21100
Tare (T)6146
Manufacterer's Rear Axle Weight11000
Manufacterer's Front Axle Weight7100

Drive Axle

Reduction TypeSingle
Final Ratio5,857

Brakes

TypeFull air dual
FrontDrums
RearDrums
Anti-lock Braking System (ABS)Yes

Fuel

Tank Capacity (l)300

Tyres

Size315/80R22.5

Suspension

FrontParabolic Leaf Springs
RearParabolic Leaf Springs
